R120

R120

Color:

Related Products
R12070mm Height Low Profile Cooler

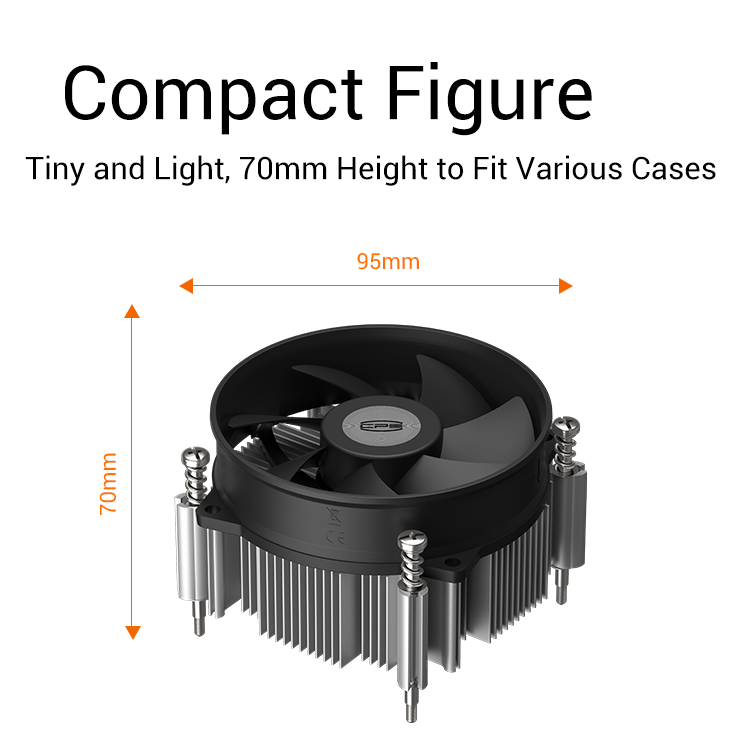

114mmCompact FigureTiny and Light, 70mm Height to Fit Various Cases70mm

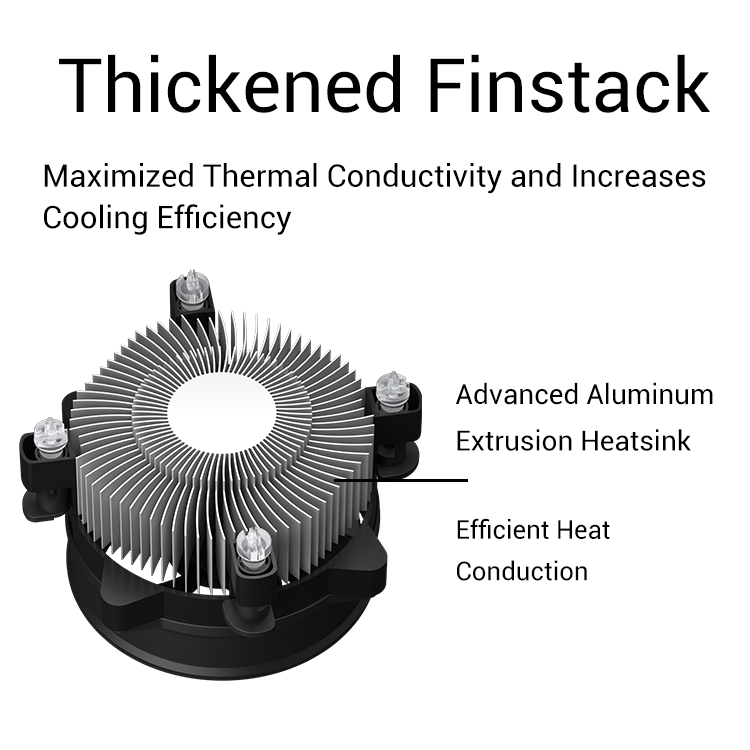

Thickened FinstacksMaximized Thermal Conductivity and Increases CoolingEfficiencyAdvanced Aluminum Extrusion HeatsinkEfficient Heat Conduction

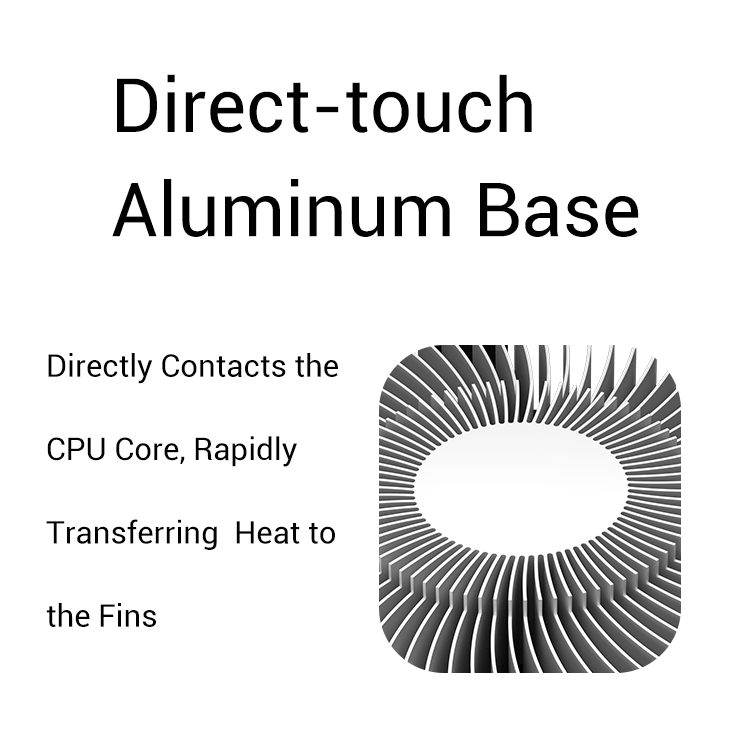

Direct-touch Aluminum BaseDirectly Contacts the CPU Core, Rapidly TransferringHeat to the Fins
9CM Temperature-Controlled FanSupports PWM Intelligent Speed Control7 Pressure-optimized BladesHigh Quality Hydraulic BearingSpeed: 900~2700±10%RPMAirflow MAX: 36.4 CFMStatic Pressure MAX: 2.61mmH2O
R120R120R120R120R120

Specifications

ModelR120
EAN6940526113676
P/NR120-XXNIXX-GL
TDP95W
CPU SocketIntel LGA115X/1200/1700/1851
Product DimensionW114× L114 × H70mm
Net Weight191g
ColorSilver
Fan Quantity1pc
Warranty1year
Fan Dimension95*95*25mm
Fan Bearing TypeHydro Bearing
Fan Speed900~2700±10%RPM
Fan Air Flow36.4CFM±10%
Fan Air Pressure2.61mmH2O
Fan Noise27.8dBA±10%
Fan Rated Voltage12V
Fan Rated Current0.1A
Fan Power Consumption1.2W
Fan Connector4PIN PWM
Retail Box Dimensions (L*W*H) [mm]117*117*76mm
Carton Dimensions [mm]485*485*255mm
Quantity per Carton[PCS]48pcs
Carton Gross Weight[kg]12.5kg
ModelR120
EAN6940526113676
P/NR120-XXNIXX-GL
TDP95W
CPU SocketIntel LGA115X/1200/1700/1851
Product DimensionW114× L114 × H70mm
Net Weight191g
ColorSilver
Fan Quantity1pc
Warranty1year
Fan Dimension95*95*25mm
Fan Bearing TypeHydro Bearing
Fan Speed900~2700±10%RPM
Fan Air Flow36.4CFM±10%
Fan Air Pressure2.61mmH2O
Fan Noise27.8dBA±10%
Fan Rated Voltage12V
Fan Rated Current0.1A
Fan Power Consumption1.2W
Fan Connector4PIN PWM
Retail Box Dimensions (L*W*H) [mm]117*117*76mm
Carton Dimensions [mm]485*485*255mm
Quantity per Carton[PCS]48pcs
Carton Gross Weight[kg]12.5kg

Downloads

R120 HD Gallery .rar
